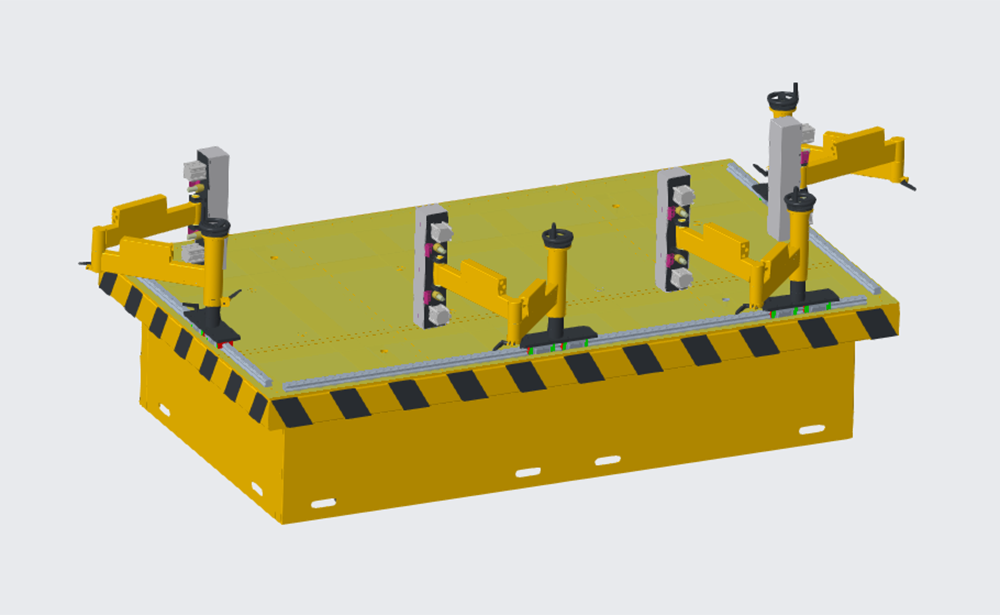

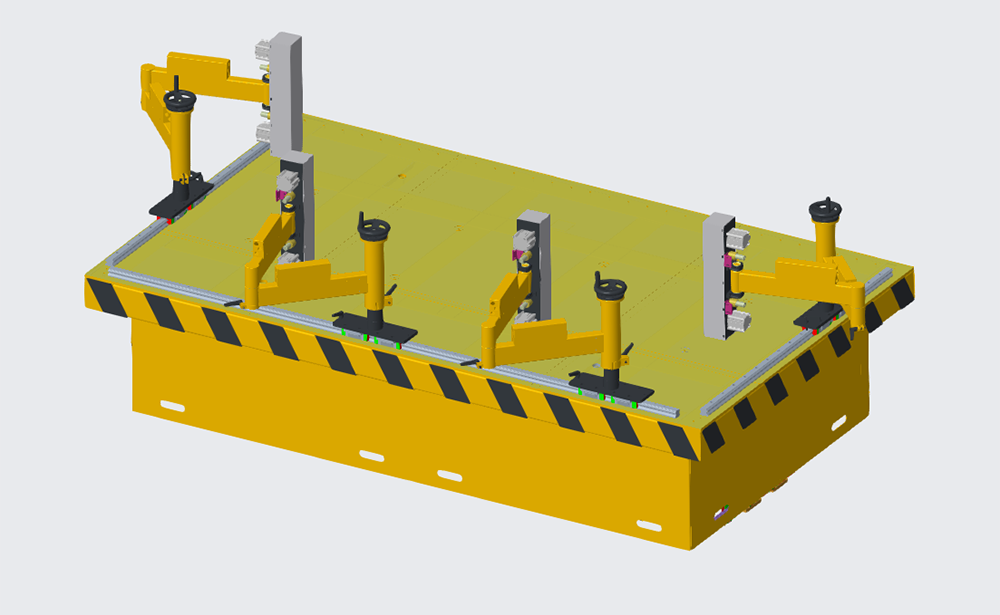

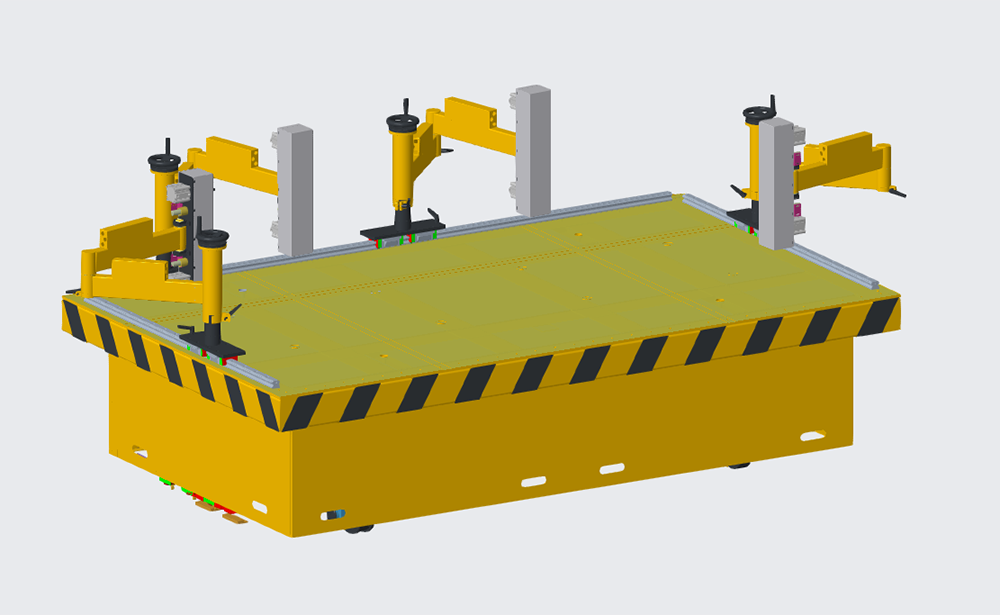

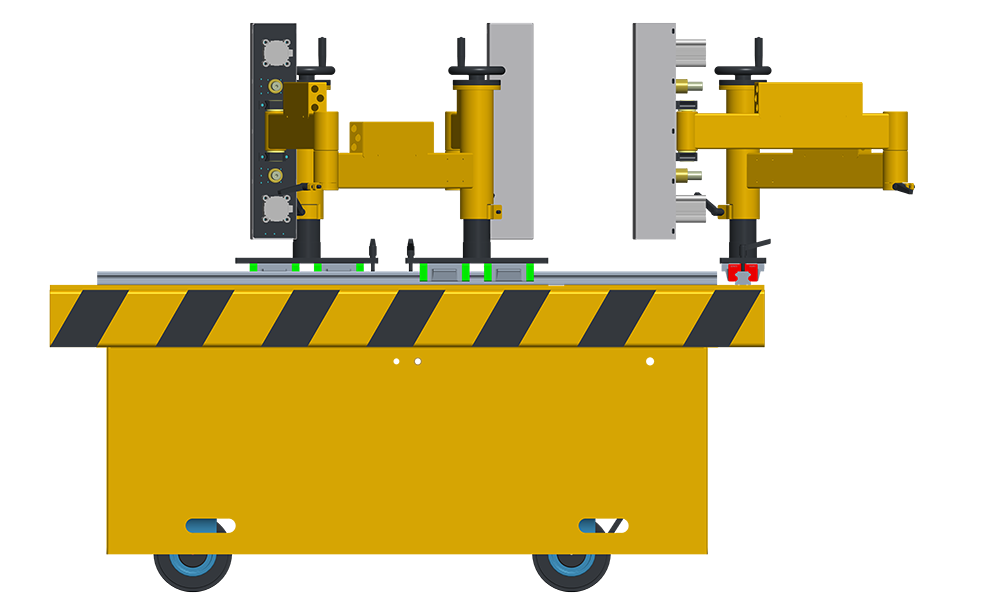

Destacker Carriage
Destacker Carriage is mainly used to separate stacks and help robots or robots to destack. The articulated or hand-held magnetic separator can be installed on the table, which is suitable for the magnetic separation of various special-shaped sheets; the trolley has a driving and drag chain mechanism, which can move on the pre-laid guide rails to facilitate the replacement of stacks, The robot can be instructed to automatically switch to another machine when the sheet is dismantled, so that the stacking material can be replenished without interruption.
Destacker carriage 1 | Destacker carriage 1.5 | Destacker carriage 2 | Destacker carriage 3 | Destacker carriage 4 | |
Size（mm） | 800*1000*550H | 1000*1500*550H | 1500*2000*550H | 2000*3000*550H | 2000*4000*550H |
Number of magnetic dividers | Optional | Optional | Optional | Optional | Optional |
Air knife | Optional | Optional | Optional | Optional | Optional |
Maximum transport load (tons) | 3 | 5 | 10 | 15 | 15 |
Walking speed (m/min) | 5 | 5 | 5 | 5 | 5 |
